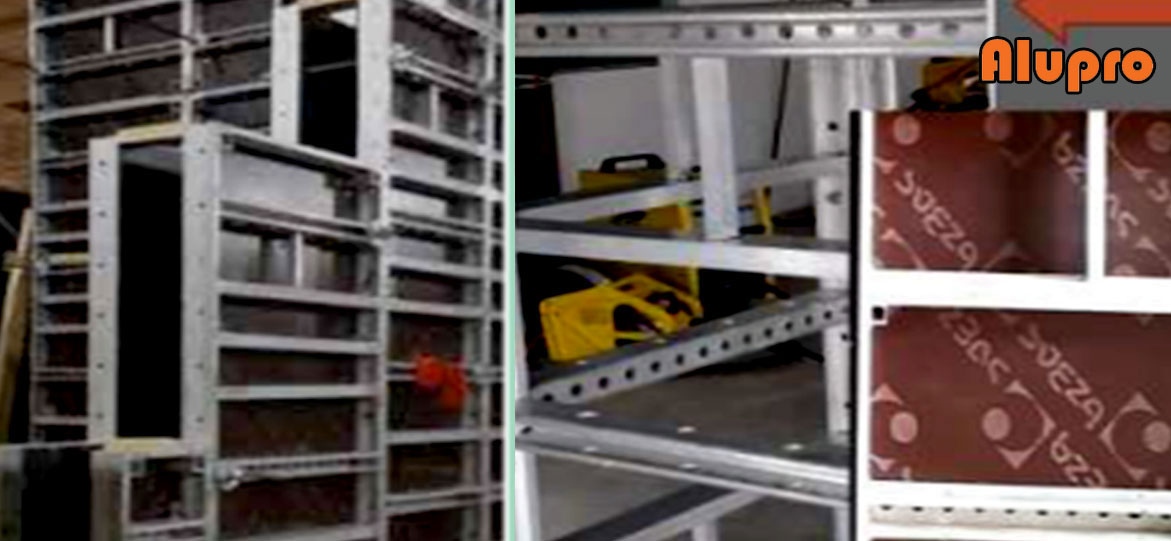

FPE Alupro

FPE Alupro is available in various standard sizes. It's pick & play concept allows versatility wherein column formwork can be converted into wall formwork and vice versa. All panels are universal panel that provides the flexibility of change in size. It is actually benefiting by saving the further investment cost.

Sizes (mm)

• Width: 300, 450, 600, 750
• Height: 1200, 1500, 2400, 3000
• Universal Panels designed for 50 mm
• incremental to decrease/increase column sizes

Technical Features

FPE Alupro is made out of Aluminium sectional frame with high quality Russian Birchply sheeting
12mm Plywood sheeting is protected with frame and sealing agent. Material Used in FPE Alupro
Aluminium section profile 6061-T6 grade.
Frame making through PLC sawing machine and welded with branded filler coils.
12mm Film faced High Quality Ply for more uses.
9ply core with each 1.4mm veneer has no joints leads to much longer repetitions when secured in frame.
Light weight panel system- 18kg per sqm approx still designed for 60 Kn/sqm concrete pressure.
