Brackets & Shaft Platforms

Climbing System is used for tall structures like cooling towers, tankages core walls where staging or scaffolding along the interior or exterior walls would prove uneconomical.

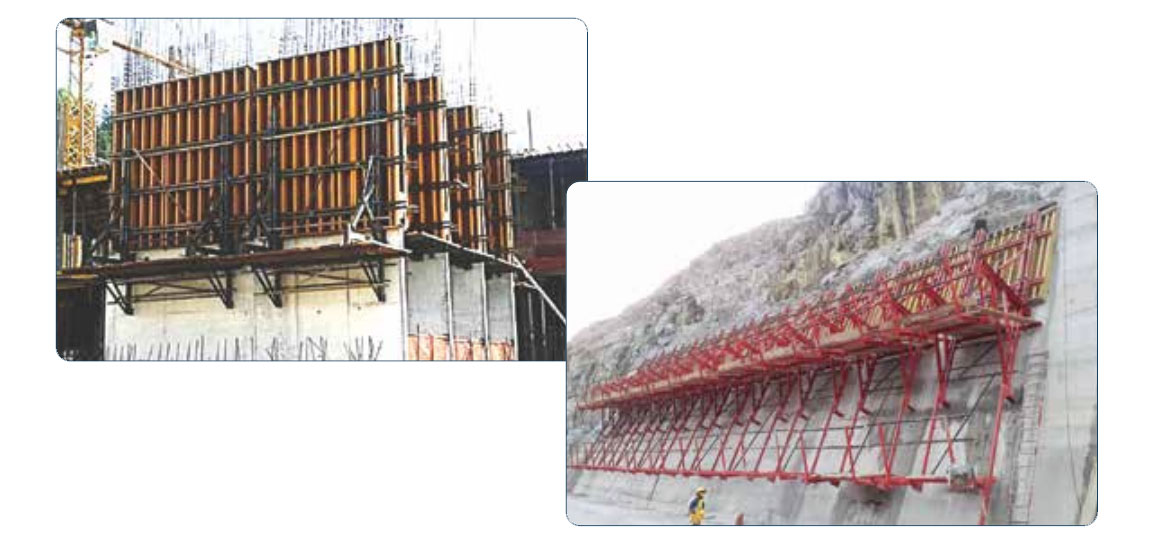

In the Climbing System. brackets are hooked to anchors (lost anchors) already provided along the cast wall and supports, from where the shuttering is supported with alignments rests. The brackets will have necessary walkways, working platforms and handrail for safety and ease of work. Shaft Platforms with Climbing pawl attached to the main beams which can be shifted to next location using crane.
The platforms will rest on the pockets left in RC Wall and will allow only upward movement when lifted with crone and locks automatically while comes to the pocket location.
Travel climbing. crane handled - platform width 1.50 m /2.40m Roll back arrangement for de-shuttering and cleaning of shutters. The wall formwork and climbing bracket are lifted as one unit.
This works with either FPE Classic or FPE- SPS panel system. The application oreos are mainly in High rise Residential & commercial building sector.
